Stainless Steel Schedule Unions Supplier in Saudi Arabia

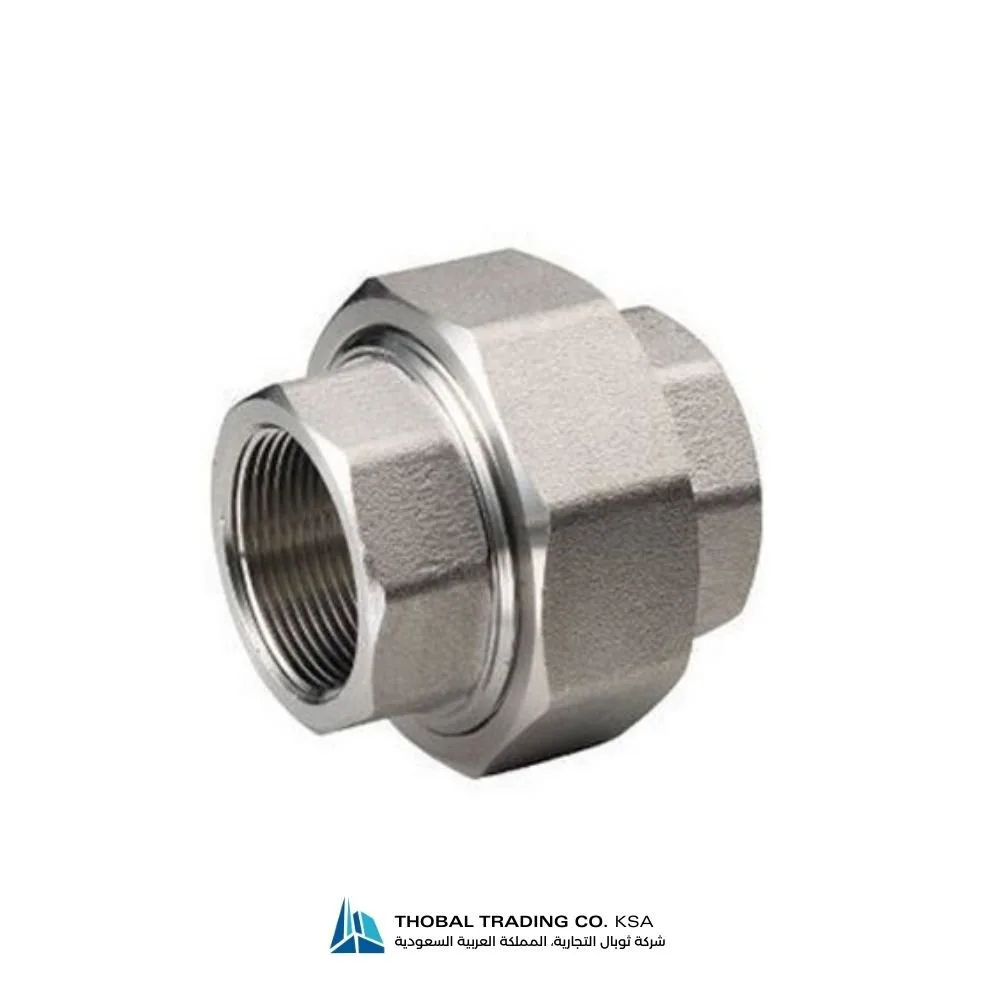

An Industrial Union is a essential fitting that provides a semi-permanent, yet easily removable joint between two pipes. Unlike a coupling, which requires the pipe to be cut for removal, a union’s three-piece design allows the piping system to be “broken” at specific points for maintenance, repair, or equipment replacement.

Precision 3-Piece Construction

The union consists of three distinct parts that work together to create a high-pressure seal:

1. Male Tailpiece: The threaded or socket-weld end that fits into the nut.

2. Female Tailpiece: The mating end that provides the sealing surface.

3. The Nut: A heavy-duty hexagonal or octagonal nut that draws the two tailpieces together, compressing the sealing faces.

Sealing Mechanisms: Metal-to-Metal vs. Gasketed

Our 3000# Forged Unions typically feature a precision-ground Metal-to-Metal Ball Joint seat. This tapered design creates a high-integrity seal capable of withstanding extreme pressures and thermal cycling without the need for a separate gasket. For lower-pressure applications, our 150# Cast Unions are available with integrated seats designed for standard industrial service.

Heavy-Duty Metallurgy

Fabricated from AISI 304 or 316L Stainless Steel, these unions are engineered for longevity in aggressive environments. The SS 316L variant is the preferred choice for chemical processing and marine applications due to its superior resistance to pitting and chloride-induced corrosion.

• Pump & Equipment Manifolds: Critical for connecting pumps, compressors, and heat exchangers to rigid piping, allowing for rapid equipment removal for maintenance or overhaul.

• Chemical Process Skids: Providing accessible break-points in SS 316L process lines handling corrosive acids and solvents, ensuring easy system reconfigurations.

• High-Pressure Steam Systems: Using 3000# forged unions to manage steam trap assemblies and headers where thermal expansion and high pressure require a robust ball-joint seal.

• Oil & Gas Refining: Essential for small-bore piping in refinery utilities, particularly in fuel gas and high-pressure air distribution networks.

• Water Treatment Facilities: Used in large-scale filtration arrays and reverse osmosis (RO) skids where piping must be periodically dismantled for membrane replacement.

• Industrial Boiler Feed: Reliable connections for water supply lines and blowdown headers where high-vibration and pressure fluctuations are constant.

• Hydraulic & Fluid Power: Socket-weld 3000# unions are widely used in industrial hydraulic systems to provide high-strength, leak-proof joints for high-velocity oil transfer.
