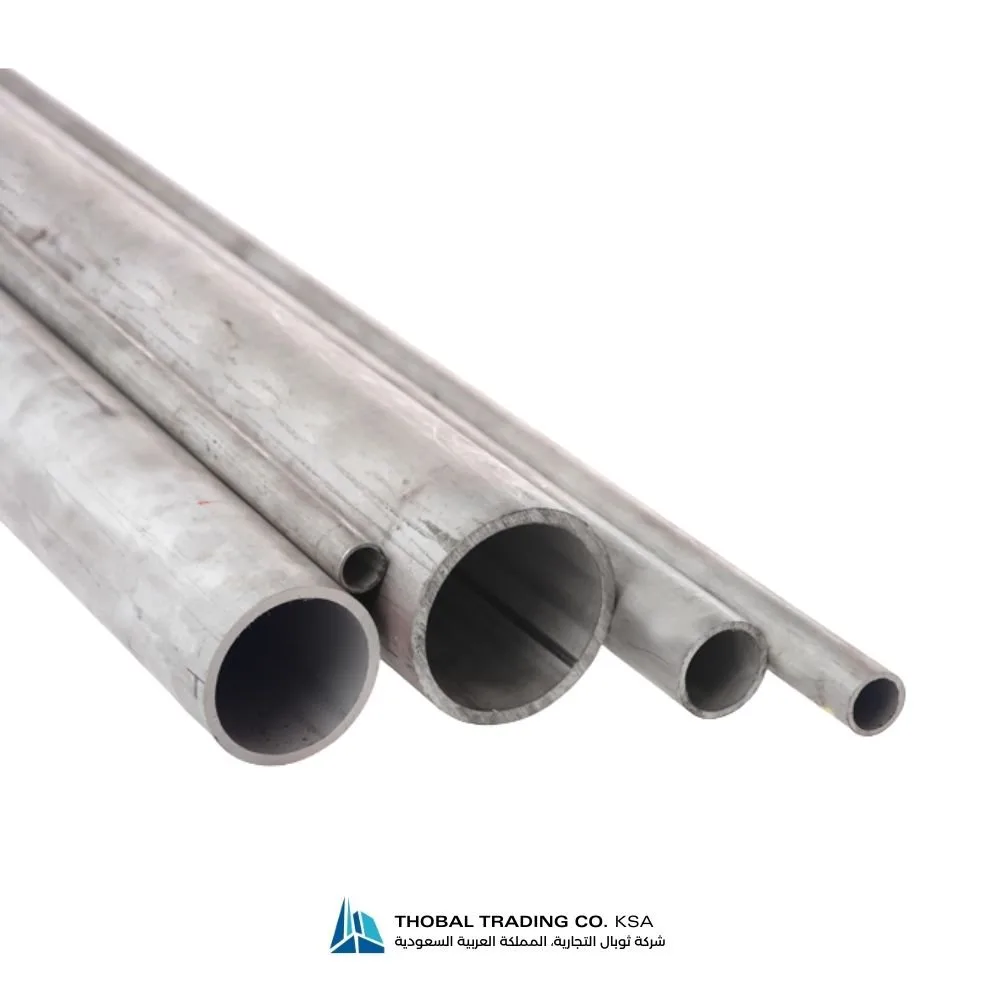

Stainless Steel Pipes (Schedule)

Our Industrial Stainless Steel Schedule Pipe is engineered for high-pressure and corrosive process environments. Manufactured to strict ASTM A312 standards, these pipes are available in premium SS 304L and SS 316L alloys. Whether you require Schedule 10 for general utilities or Schedule 40/80 for high-pressure headers, our piping provides the structural integrity and chemical resistance required for mission-critical B2B infrastructure in the energy, chemical, and water sectors.

SKU SC-PIP-042 Category

Product Overview

Industrial Schedule Piping is the foundation of modern process engineering. Unlike thin-walled hygienic tubing, schedule pipe is designed based on Nominal Pipe Size (NPS) and wall thickness “Schedules,” providing the mechanical strength necessary to handle extreme pressures, thermal stresses, and aggressive chemical media.

Engineered for Extreme Environments

The performance of an industrial line is defined by its ability to withstand internal and external stressors. Our pipes are manufactured under the ASTM A312 specification, ensuring consistent chemical composition and mechanical properties. This makes them suitable for welding, threading, or flanging into complex industrial networks where safety and long-term reliability are non-negotiable.

Seamless vs. Welded Construction

To meet varying budget and performance requirements, we offer two primary manufacturing methods:

  • Seamless Pipe: Extruded from a solid billet, seamless pipe has no longitudinal weld seam, offering the highest pressure ratings and superior resistance to internal corrosion. It is the preferred choice for critical high-pressure headers.

  • Welded (ERW/EFW) Pipe: Produced from cold-formed stainless steel strip and precision-welded. Modern welding technology ensures the seam is as strong as the parent metal, providing a cost-effective solution for large-diameter distribution lines.

Superior Corrosion Resistance (SS 316L)

For environments involving salt water, acids, or industrial waste, we prioritize AISI 316L (Low Carbon). The addition of Molybdenum and the reduced carbon content provide excellent protection against pitting and intergranular corrosion, significantly extending the service life of the piping system in harsh B2B environments.

Technical Specifications

Technical Parameter Specification Details
Material Grade ASTM A312 TP304/L, TP316/L, TP321
Wall Thickness (Schedules) SCH 5S, 10S, 40S, 80S, 160, XXS
Manufacturing Standards ASTM A312, ASME B36.19M, ASME B36.10M
Pipe NPS Range 1/8″ to 24″ (Standard NPS)
Manufacturing Method Seamless (SMLS) or Welded (ERW/EFW)
Surface Condition Annealed & Pickled (Industrial Finish)
Testing Protocols 100% Hydrostatic, Eddy Current, PMI, Ultrasonic

Applications

  • Oil & Gas Refineries: High-pressure transport of hydrocarbons, steam, and utility water in SS 316L headers.

  • Chemical Processing: Distribution lines for corrosive acids, alkalis, and solvents where material stability is critical.

  • Water & Wastewater Treatment: Large-scale piping for desalination plants, reverse osmosis (RO) skids, and municipal effluent lines.

  • Power Generation: Main steam distribution, condensate return lines, and boiler feed-water systems.

  • Marine & Offshore: Saltwater cooling systems, fire-main headers, and ballast piping on offshore platforms.

  • Industrial HVAC: Chilled water and hot water circuits in large-scale commercial and industrial climate control systems.

  • Pulp & Paper Industry: Managing process water and chemical stock in highly abrasive and corrosive environments.
