Product Overview

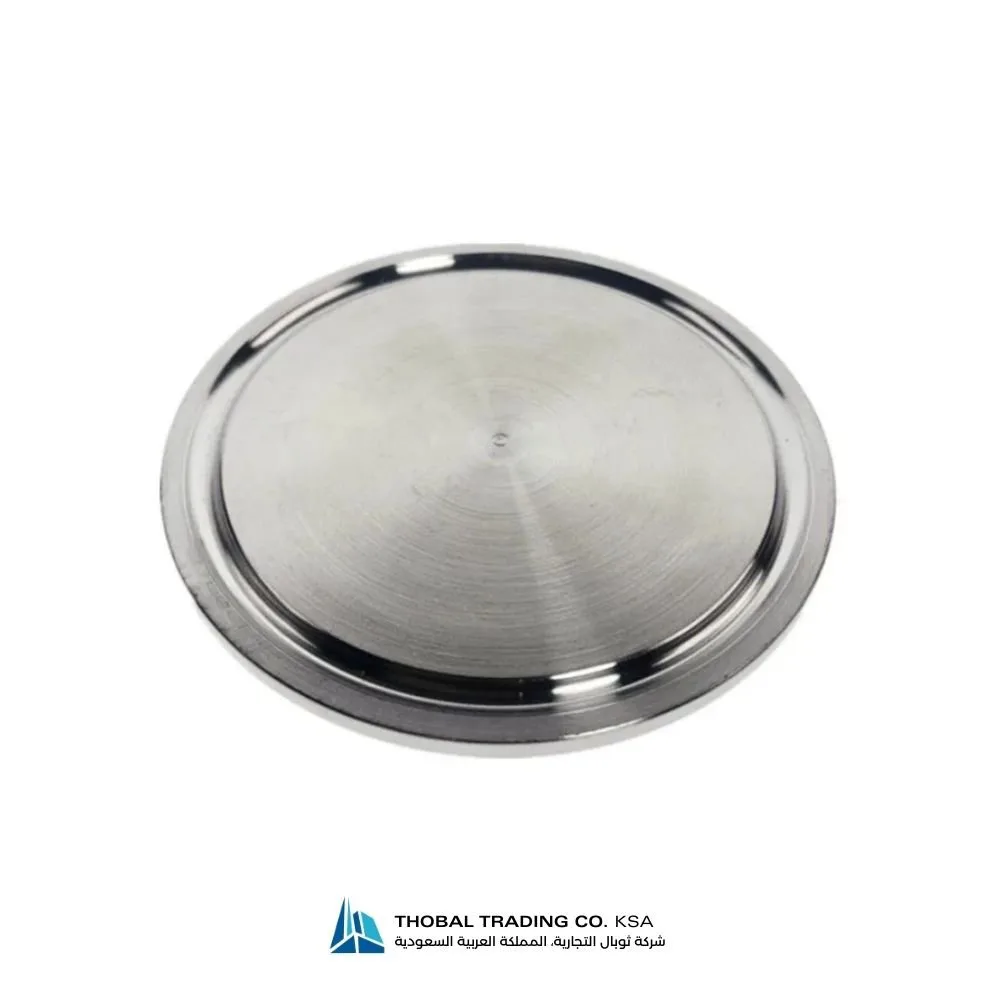

In hygienic fluid processing, the Ferrule End Cap is a critical component used to block off a pipeline or a vessel port using a mechanical clamp assembly. Unlike welded end caps, ferrule caps provide the flexibility to quickly seal and unseal ports, making them essential for modular systems and frequent cleaning cycles.
Rapid, Leak-Proof Termination
The ferrule end cap is designed to work in conjunction with a Tri-Clamp (Tri-Clover) and a sanitary gasket. The tapered flange of the cap matches perfectly with the pipe’s ferrule, creating a compression seal that is both leak-proof and highly resistant to pressure. This mechanical connection allows for rapid installation and removal without the need for tools or welding.
Mirror-Polished for Maximum Hygiene
Cleanliness is the core requirement of B2B food and pharma production. Every ferrule end cap is mechanically polished to a mirror finish, achieving an internal surface roughness of Ra < 0.8μm. This ultra-smooth, crevice-free surface prevents product adhesion and eliminates microscopic bacterial breeding grounds, ensuring full compatibility with Clean-in-Place (CIP) and Steam-in-Place (SIP) sterilization procedures.
Material Reliability and Compliance
Fabricated from high-purity AISI 304 or 316L Stainless Steel, these caps offer exceptional resistance to corrosive cleaning chemicals and organic acids. Our caps are designed to meet SMS 1145, DIN 11851, and 3-A Sanitary standards, providing the metallurgical consistency and dimensional accuracy required for high-purity industrial infrastructure.
