Product Overview

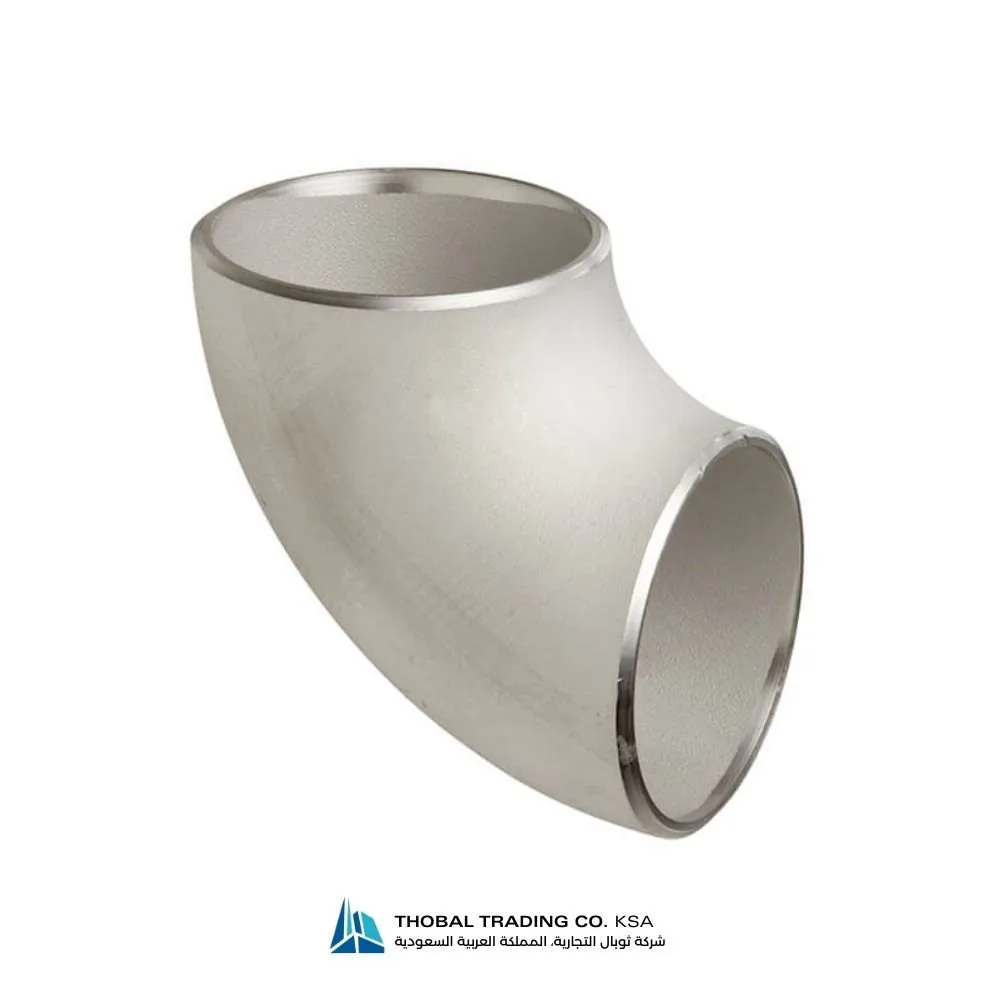

In complex industrial layouts where space is restricted, the 90 Degree Short Radius (SR) Schedule Elbow is an indispensable fitting. Unlike standard long radius elbows, the SR variant has a center-to-face dimension equal to the nominal pipe diameter, allowing for significantly tighter bends.
Space-Efficient Piping Design
The primary advantage of the Short Radius elbow is its compactness. These fittings are specifically engineered for use in modular system designs, offshore skids, and industrial machinery where a 90-degree turn must be executed within a limited footprint without sacrificing the pressure rating or material durability.
Heavy-Duty Buttweld Construction
Constructed for buttweld connections, these elbows provide a permanent, high-strength joint. The ends are precision-machined with a bevel to facilitate full-penetration welding, ensuring the system remains leak-proof under significant mechanical stress and thermal cycling. This makes them a reliable choice for professional B2B industrial infrastructure.
Industrial Compliance and Material Grades
Our short radius elbows are manufactured in strict accordance with ASME B16.9 and ASTM A403. Whether you require AISI 304 for standard oxidation resistance or AISI 316L for superior protection against chloride pitting and chemical corrosion, these elbows deliver the metallurgical consistency required for critical service.
